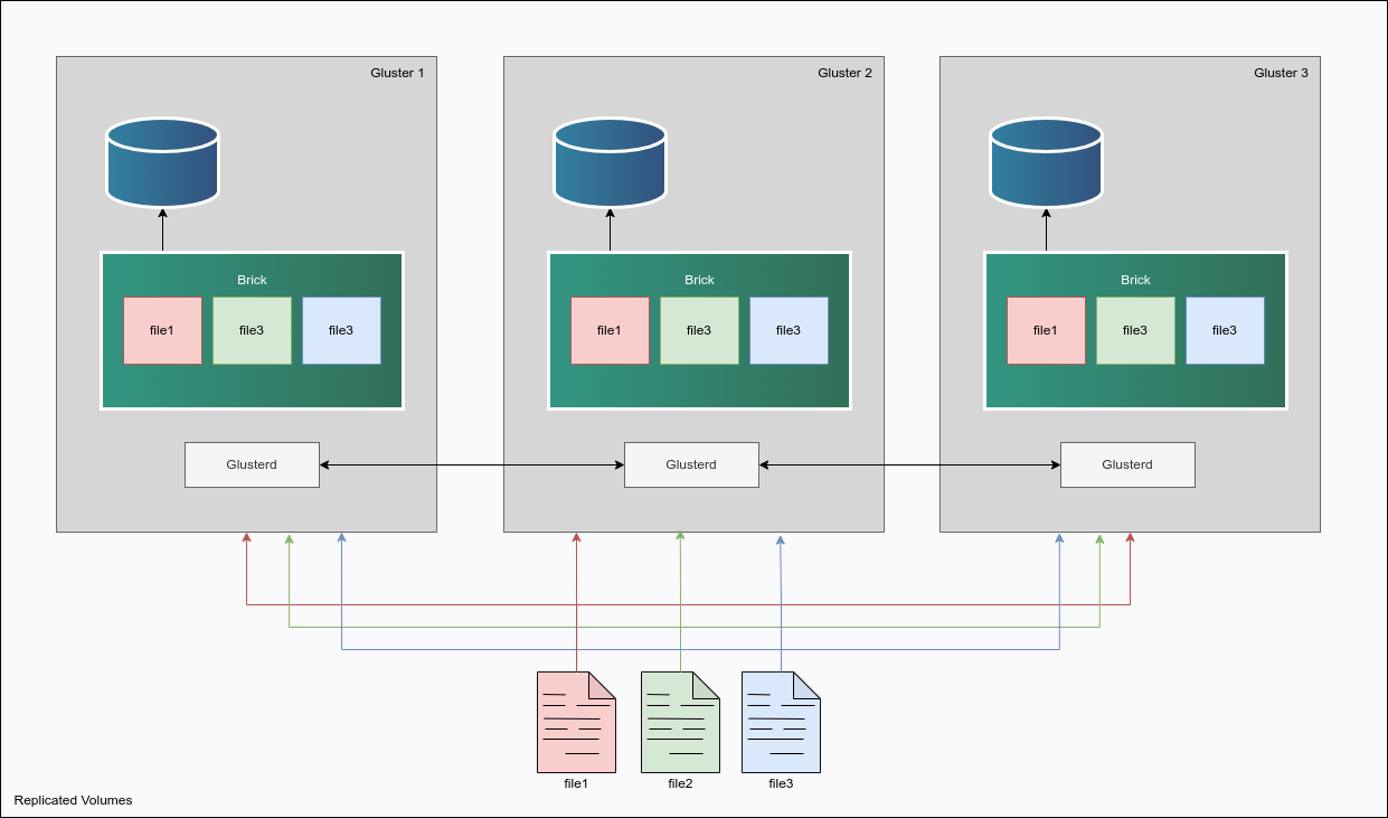

Cluster Deployment Architecture

GlusterFS GlusterFS is an open-source, distributed network filesystem designed to scale out and handle large amounts of data across compute instances. It replicates data across multiple GlusterFS servers into a single application mount point, allowing seamless access to files to client instances. With its flexible architecture and ability to replicate data across nodes, GlusterFS provides high availability and fault tolerance, making it suitable for cloud storage and high availability architectures.

Deploying a Marketplace App

The Linode Marketplace allows you to easily deploy software on a Compute Instance using the Cloud Manager. See Get Started with Marketplace Apps for complete steps.

  1. Log in to the Cloud Manager and select the Marketplace link from the left navigation menu. This displays the Linode Create page with the Marketplace tab pre-selected.

  2. Under the Select App section, select the app you would like to deploy.

  3. Complete the form by following the steps and advice within the Creating a Compute Instance guide. Depending on the Marketplace App you selected, there may be additional configuration options available. See the Configuration Options section below for compatible distributions, recommended plans, and any additional configuration options available for this Marketplace App.

  4. Click the Create Linode button. Once the Compute Instance has been provisioned and has fully powered on, wait for the software installation to complete. If the instance is powered off or restarted before this time, the software installation will likely fail.

To verify that the app has been fully installed, see Get Started with Marketplace Apps > Verify Installation. Once installed, follow the instructions within the Getting Started After Deployment section to access the application and start using it.

Note
Estimated deployment time: You GlusterFS cluster should be fully installed within 5-10 minutes after the Compute Instance has finished provisioning.

Configuration Options

  • Supported distributions: Ubuntu 22.04 LTS
  • Suggested minimum plan: All plan types and sizes can be used depending on your storage needs.

GlusterFS Options

  • Linode API Token: The provisioner node will use an authenticated API token to create the additional components to the cluster. This is required to fully create the GlusterFS cluster.

Limited Sudo User

You need to fill out the following fields to automatically create a limited sudo user, with a strong generated password for your new Compute Instance. This account will be assigned to the sudo group, which provides elevated permissions when running commands with the sudo prefix.

  • Limited sudo user: Enter your preferred username for the limited user. No Capital Letters, Spaces, or Special Characters.

    Locating The Generated Sudo Password

    A password is generated for the limited user and stored in a .credentials file in their home directory, along with application specific passwords. This can be viewed by running: cat /home/$USERNAME/.credentials

    For best results, add an account SSH key for the Cloud Manager user that is deploying the instance, and select that user as an authorized_user in the API or by selecting that option in the Cloud Manager. Their SSH pubkey will be assigned to both root and the limited user.

  • Disable root access over SSH: To block the root user from logging in over SSH, select Yes. You can still switch to the root user once logged in, and you can also log in as root through Lish.

    Accessing The Instance Without SSH
    If you disable root access for your deployment and do not provide a valid Account SSH Key assigned to the authorized_user, you will need to login as the root user via the Lish console and run cat /home/$USERNAME/.credentials to view the generated password for the limited user.

Warning
Do not use a double quotation mark character (") within any of the App-specific configuration fields, including user and database password fields. This special character may cause issues during deployment.
  • List of IP addresses to whitelist: A list of IP address that will be whitelisted to the GlusterFS cluster. These should be client IPs that will mount GlusterFS. SSL certificates will be created for the provided IP addresses.

Getting Started After Deployment

GlusterFS is now installed and ready to use!

  1. Before you can use your new GlusterFS cluster, your clients will need to install a single dependency to mount GlusterFS as a filesystem:

    • On every client node, install the GlusterFS client:
    sudo apt install glusterfs-client
  2. Next, ensure that the GlusterFS client knows we are using SSL certificates. We’ll create the secure-access file. Do this on every client node:

    mkdir /var/lib/glusterd
    touch /var/lib/glusterd/secure-access
  3. Grab the certificate for each respective client from the first GlusterFS instance.

    If during the creation of the cluster you provided client IPs, you will find SSL certificates on the first GlusterFS server in /usr/lib/ssl:

    (env) root@gluster1:/usr/lib/ssl# ls -l
    total 68
    lrwxrwxrwx 1 root root    14 Mar 16  2022 certs -> /etc/ssl/certs
    -rw-r--r-- 1 root root  1630 Mar 28 14:40 client1.csr
    -rw------- 1 root root  3243 Mar 28 14:40 client1.key
    -rw-r--r-- 1 root root  1761 Mar 28 14:40 client1.pem
    -rw-r--r-- 1 root root  1630 Mar 28 14:40 client2.csr
    -rw------- 1 root root  3243 Mar 28 14:40 client2.key
    -rw-r--r-- 1 root root  1761 Mar 28 14:40 client2.pem
    -rw-r--r-- 1 root root  1630 Mar 28 14:40 client3.csr
    -rw------- 1 root root  3243 Mar 28 14:40 client3.key
    -rw-r--r-- 1 root root  1761 Mar 28 14:40 client3.pem
    -rw-r--r-- 1 root root   769 Mar 28 14:40 dhparams.pem
    -rw-r--r-- 1 root root 10584 Mar 28 14:40 glusterfs.ca
    -rw-r--r-- 1 root root  1635 Mar 28 14:40 glusterfs.csr
    -rw------- 1 root root  3243 Mar 28 14:40 glusterfs.key
    -rw-r--r-- 1 root root  1765 Mar 28 14:40 glusterfs.pem
    drwxr-xr-x 2 root root  4096 Mar 28 14:16 misc
    lrwxrwxrwx 1 root root    20 Feb 16 08:51 openssl.cnf -> /etc/ssl/openssl.cnf
    lrwxrwxrwx 1 root root    16 Mar 16  2022 private -> /etc/ssl/private

    This output assumes you created 3 client certificates! We’ll focus on installing the certificate for first client which is identified as client1 in the above output:

    • Copy the contents of client1.pem from gluster1 and place it under /usr/lib/ssl/glusterfs.pem on client1
    • Copy the contents of client1.key from gluster1 and place it under /usr/lib/ssl/glusterfs.key on client1
    • Copy the contents of glusterfs.ca from gluster1 and place it under /usr/lib/ssl/glusterfs.ca on client1
  4. Finally, mount GlusterFS from the client nodes. Replace gluster1 with the private IP address of the first GlusterFS instance.

    mount -t glusterfs gluster1:/data-volume /mnt
  5. Update the client’s /etc/hosts file. For example:

    192.168.139.160 gluster1
    192.168.201.13 gluster2
    192.168.230.83 gluster3

    Update the IP addresses to match your GlusterFS IP addresses.

  6. Mount the GlusterFS filesystem automatically on boot.

    • Edit the /etc/fstab on the client nodes and append the following:
    gluster1:/data-volume  /MYMOUNT  glusterfs defaults,_netdev,backup-volfile-servers=gluster2:gluster3 0 0

    Note: Update MYMOUNT with the location of where GlusterFS should be mounted. This could /mnt as an example.

  7. Follow steps 1 through 6 for the remainder clients that need to be configured.

You are done!

Software Included

The GlusterFS Marketplace App installs the following software on your Linode:

SoftwareDescription
GlusterFSDistributed network filesystem.
FirewalldFirewalls to restrict port-level access to the cluster

Note
Currently, Linode does not manage software and systems updates for Marketplace Apps. It is up to the user to perform routine maintenance on software deployed in this fashion.
